SPACE-SAVING WIDTH
OPTIONAL SLIDE-OUT RACK
ENHANCED WIRING ACCESS
SPACE-SAVING PROTECTION

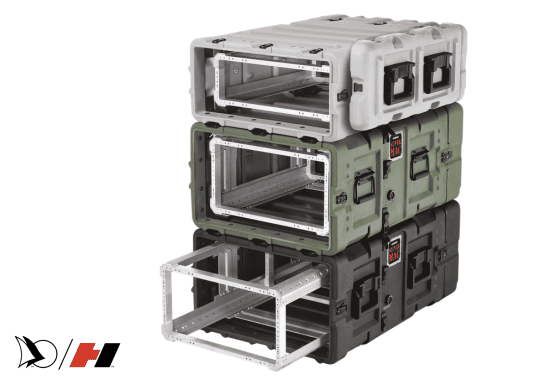

Space-saving rack protection with dependable shock and vibration performance, efficient equipment integration and optional full-access removable frame. Peli-Hardigg SuperMAC rack cases protect sensitive electronics in defence, aerospace, broadcast, IT, test and communications environments where space is limited.
Built around a 19-inch EIA standard rack, the compact design uses every inch efficiently while providing ample room for wiring. The optional Lock ‘N Load removable rack slides out like a file drawer, providing full access to installed equipment.
SHOCK / VIBRATION SYSTEM
Shock Isolation Mounts with an extruded aluminium tapped rack frame, reinforced ‘Dog Ear’ corners and heavy-duty rubber boot shocks provide flexible protection against impact and vibration.
Specs:
| Sizes | 3U, 4U, 5U, 6U, 7U, 9U, 11U, and 14U |
| G-Rating* | 40 - 70 |
| Payload | 11,3 to 56.7 kg 56.7 kg to 90.7 kg |
| Sway Space | 25 mm sway space for the ability to decelerate shock |
| Base Features | » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HCB) » Eight (8) Plastic Comfort Grip Handles on front and back lids and on each side of the case body » Heavy Duty Reinforced Extruded Aluminum Rack Frame with patented “Dog Ear” reinforced corners » Lid Hangers » Mould-in Edge Casters on 127 mm Lid » Tapped Standard (SAE) or Metric (M6) |
| Typical Applications | Typical uses include control consoles and panels, radar and microwave antennas, solid-state circuit electronics, or radio, TV and communications equipment. |
| Optional Frame | Square hole frame option. Cylindrical Shock Mounts installed on a heavy-duty square hole frame. Shock mounts attach to the metal reinforcement rails that run the full length of each corner of the case body. Cage nuts kits provided based on the Metric or SAE frame option that is chosen. |
| Customisation | SuperMAC™ cases are fully configurable and made to order using the list of options. They can be customised by our Technical Sales solution team. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
