RECYCLED MATERIALS
COST-EFFECTIVE
READY TO SHIP
OFF-THE-SHELF PROTECTION

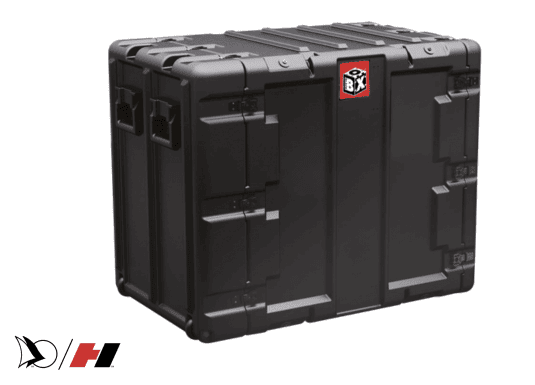

Ready-to-ship light-duty rack protection with dependable shock performance, preconfigured sizes and strong overall value. Peli-Hardigg BlackBox cases protect rack-mounted audio, communications, test and field electronics when fast availability and cost efficiency are essential.
Built with a recycled-material rotomoulded shell, a 19-inch EIA steel frame with metric M6 tapped holes, eight cylindrical elastomeric shock mounts and integrated wheels, the range offers seven U sizes, 24- and 30-inch depths and payload capacities from 36.3 to 45.4 kg.
SHOCK / VIBRATION SYSTEM
Specs:
| Sizes | 3U, 4U, 5U, 7U, 9U, 11U, and 14U 2" front lid and 5” back lid standard |
| G-Rating | 40 - 80 |
| Payload | 9 kg to 45.4 kg |
| Sway Space | 25.4 mm sway space for the ability to decelerate shock  |
| Base Features | » Black Carbon Steel Non-Locking Catch-and-Strike Hardware » Four (4) Plastic Comfort Grip Handles » 2" Front Lid and 5" Back lid » Mould-in Edge Casters on 5" Lid » Closed Loop Gasket with rivet vent in handle well » Light Duty Steel Frame Tapped M6 |
| Typical Applications | Typical uses include audio/video recording and processing systems, satellite communication systems, radio communication systems, seismic data recording instrumentation, climate data collection, field-deployed amplifiers and electronics, medical or testing equipment components |
| Customisation | BlackBox cases are an Off-the-Shelf product, in stock and ready to ship. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
