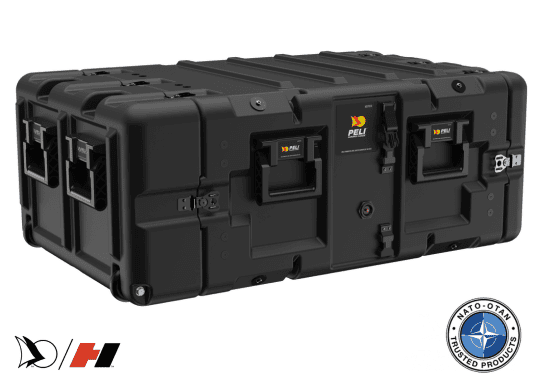

Super-V | Peli Rack Cases

24/30-INCH RACK DEPTHS

SQUARE-HOLE STEEL FRAME

READY TO SHIP

VERSATILE RACK DEPTHS

Ready-to-ship medium-duty rack protection with 24- and 30-inch depths, industry-standard square-hole mounting and dependable shock isolation. Peli-Hardigg Super-V cases safeguard servers, communications equipment, AV systems and other professional electronics in military, IT, broadcast and field environments.

Built around a 19-inch EIA steel frame accepting 10-32 Imperial or M6 metric cage nuts, 24-inch models are available in 3U, 4U, 5U, 7U, 9U, 11U and 14U, while 30-inch models are available in 3U, 5U, 7U and 9U. Wall-mounted cylindrical shock mounts, pressure equalisation and integrated rolling features protect payloads up to 77 kg.

Learn More

SHOCK / VIBRATION SYSTEM

Steel square-hole frame using Standard (US) or Metric (M6) cage nuts. The shock mounts are attached directly to the case wall.

Specs:

SEE RACK COMPARISON CHART

Sizes	24": 3U, 4U, 5U, 7U, 9U, 11U and 14U 30": 3U, 5U, 7U, 9U 2" front lid and 5” back lid standard
G-Rating*	15 - 30 G
Payload	3U, 4U, 5U are 36 - 45 kg. 7U, 9U, 11U and 14U are 45 - 77 kg.
Sway Space	25 mm
Base Features	» Black Plastic Handles » Black Carbon Steel Non-Locking Catch-and-Strike Hardware » Steel Square Hole Rack Frame » Pressure Relief Valve and Closed Loop Gasket » Lid Hangers and Coupling Catches » Moulded-in Stacking Ribs » 3U- 5U cases include qty (24) 10-32 and qty of (24) M6 Clip Nuts » 7U- 14U includes (48) 10-32 and qty of (48) M6 Clip Nuts
Rolling Features	All U-sizes have mould-in Edge Casters on 127 mm Lid
Typical Applications	Typical uses include professional A/V, music and entertainment industry, small office infrastructure, mobile video/photography, news reporting, prosumer/commercial drone control, HDD or connected servers for app/game development
Customisation	Classic-V-Series cases are an Off-the-Shelf product, in stock and ready to ship.

*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.

Super-V Sizing Options

3U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-3U	13.3 x 48.3 x 61 cm	5.6 cm	13.2 cm	22.68 kg
SUPER-V-SERIES-3U-30	13.3 x 48.3 x 76.2 cm	5.6 cm	13.2 cm	24.49 kg

4U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-4U	17.8 x 48.3 x 61 cm	5.6 cm	13.2 cm	24.04 kg

5U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-5U	22.2 x 48.3 x 61 cm	5.6 cm	13.2 cm	24.95 kg
SUPER-V-SERIES-5U-30	22.2 x 48.3 x 76.2 cm	5.6 cm	13.2 cm	26.76 kg

7U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-7U	31.1 x 48.3 x 61 cm	5.6 cm	13.2 cm	27.22 kg
SUPER-V-SERIES-7U-30	31.1 x 48.3 x 76.2 cm	5.6 cm	13.2 cm	29.48 kg

9U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-9U	40 x 48.3 x 61 cm	5.6 cm	13.2 cm	29.03 kg
SUPER-V-SERIES-9U-30	40 x 48.3 x 76.2 cm	5.6 cm	13.2 cm	31.3 kg

11U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-11U	48.9 x 48.3 x 61 cm	5.6 cm	13.2 cm	31.3 kg

14U Sizing Options

Item Number	Rack Dimensions	Lid Depth	Back Lid Depth	Weight
SUPER-V-SERIES-14U	62.2 x 48.3 x 61 cm	5.6 cm	13.2 cm	33.57 kg
