33-INCH RACK DEPTH
SQUARE-HOLE STEEL FRAME
READY TO SHIP
FULL-DEPTH SQUARE-HOLE MOUNTING

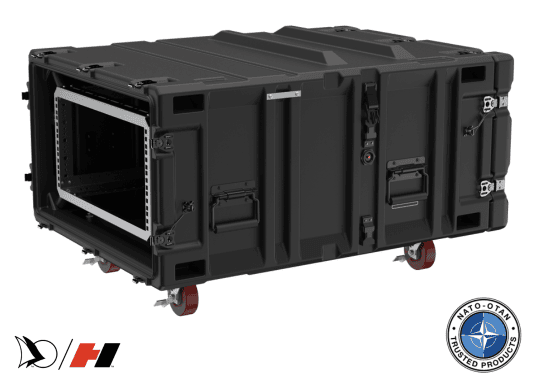

Ready-to-ship medium-duty rack protection with a full-depth 33-inch frame, industry-standard square-hole mounting and dependable shock isolation. Peli-Hardigg Classic-V cases safeguard deep servers, communications equipment, AV systems and other professional electronics in military, IT, broadcast and field environments.
Built around a 19-inch EIA steel frame accepting 10-32 Imperial or M6 metric cage nuts, the range is available from 3U to 9U and combines wall-mounted cylindrical shock mounts, pressure equalisation and rolling features for payloads up to 77 kg.
SHOCK / VIBRATION SYSTEM
Specs:
| Sizes | 3U, 4U, 5U, 7U, and 9U 2" front lid and 5” back lid standard |
| G-Rating* | N/A |
| Payload | 3U, 4U, 5U are 36.3 kg to 45.4 kg 7U and 9U are 45 - 77 kg. |
| Sway Space | 35 mm  |
| Base Features | » Black Carbon Steel Handles » Black Carbon Steel Non-Locking Catch-and-Strike Hardware » Steel Square Hole Rack Frame » Pressure Relief Valve and Closed Loop Gasket » Lid Hangers and Coupling Catches » Moulded-in Stacking Ribs » 3U- 5U cases include qty (24) 10-32 and qty of (24) M6 Clip Nuts » 7U- 14U includes (48) 10-32 and qty of (48) M6 Clip Nuts |
| Rolling Features | Sizes 3U, 4U, 5U: 88 mm (3.5") Swivel Casters Sizes 7U and 9U: Edge Casters on 127 mm lid |
| Typical Applications | Typical uses include professional A/V, music and entertainment industry, small office infrastructure, mobile video/photography, news reporting, prosumer/commercial drone control, HDD or connected servers for app/game development |
| Customisation | Classic-V-Series cases are an Off-the-Shelf product, in stock and ready to ship. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
