Peli Rack Cases

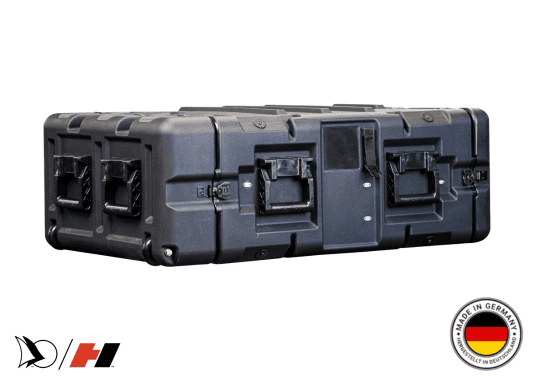

  • EURO-V RACK CASES

    Metric Square-Hole Rack Cases for Mission Readiness

REDUCED LEAD TIMES

METRIC SQUARE HOLE FRAME

COMPACT DESIGN

SUPERIOR COMPACT MOBILITY

Metric square-hole rack protection with dependable shock performance, reduced lead times and nine configurable sizes. Peli-Hardigg Euro-V rack cases protect mission-critical electronics in fast-moving field, defence, aerospace, test and communications environments.


Built in Germany with M6 square-hole steel rack frames, cylindrical shock mounts, pressure equalisation and edge castors, they offer a lightweight medium-duty solution for 10–80 kg payloads.

Learn More

SHOCK / VIBRATION SYSTEM

Cylindrical shock mounts attached directly to the case wall to isolate equipment from vibration as well as impact forces.

Specs:

SEE RACK COMPARISON CHART
 Sizes

4U, 5U, 6U, 7U, 8U, 9U and 10U
2" front lid and 5” back lid standard

 G-Rating*  15 - 30
 Payload  10 to 80 kg
 Sway Space 25 mm

 Base Features 8 Black Plastic Handles.

Pressure Equalisation Device and Closed Loop Gasket.

Lid Hangers and Coupling Catches.

Moulded in Stacking Ribs.

Interstackable with Peli Super-V, SuperMAC & BlackBox rack cases.

Typical Applications Typical uses include military rapid deployement, precision lab and test equipment, aerospace instrumentation, control consoles/panels, radar/microwave antennas, solid state electronics, communications equipment, field-deployed applications, medical and biological diagnostic devices, flight simulators
 Customisation Euro-V rack cases are Made to Order products with reduced lead times.

*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.

Euro-V Rack Sizing Options

Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-4U-S 61 cm
5 cm 12 cm 22 kg
 EURO-V-4U-L 76,2 cm5 cm12 cm 23,5 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-5U-L 76.2 cm5 cm12 cm24 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-6U-L 76.2 cm5 cm12 cm24,8 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-7U-S 61 cm
5 cm 12 cm 25 kg
 EURO-V-7U-L 76,2 cm5 cm12 cm 26,2 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-8U-L 76.2 cm5 cm12 cm27,1 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-9U-S 61 cm5 cm12 cm27 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
 EURO-V-10U-L76,2 cm5 cm15,8 cm29,7 kg
DOWNLOAD EURO-V BROCHURE →

Talk to a PELI rack case specialist.

Need help configuring your case? Availability depends on case family, style and size. A technical representative can confirm the correct configuration.

CONTACT TECHNICAL SALES
