NON-SHOCK-MOUNTED RACK
IMPACT-REDUCING FINS
AIRCRAFT-GRADE ALUMINIUM FRAME
ISOLATED LIGHTWEIGHT FRAME

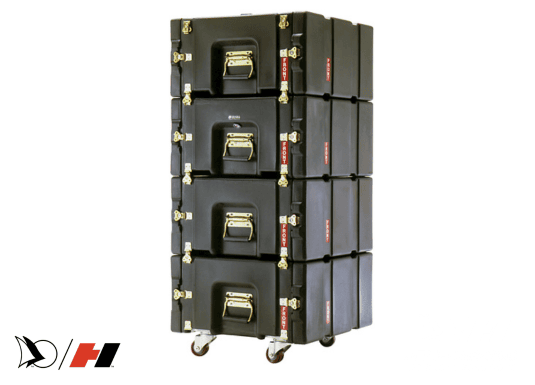

Lightweight, space-efficient rack protection for equipment that does not require a conventional shock-mounted system. Peli-Hardigg ProRack cases safeguard radios, amplifiers, test equipment and other robust electronics from rain, immersion, dust and impact.
The rugged 18-inch-deep design features a 19-inch EIA aircraft-grade aluminium rack frame mounted on plastic fins, helping reduce direct impact transmission to installed equipment. Supporting payloads up to 34 kg, ProRack cases can also be configured with coupling catches, removable castors and additional threaded rack clips.
SHOCK / VIBRATION SYSTEM
Specs:
| Sizes | 4U, 6U, 8U, 10U, and 14U |
| G-Rating* | 80 - 120 |
| Payload | Up to 34 kg. |
| Sway Space | No sway space |
| Base Features | » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HNB) » Two (2) Plastic Comfort Grip Handles, one on each lid » Aluminum Rack Frame attached to the front opening of the case body |
| Typical Applications | Typical uses include field-deployed amplifiers and electronic, semi-fragile medical or testing equipment components |
| Customisation | ProRack™ cases are fully configurable and made to order using the list of options. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
