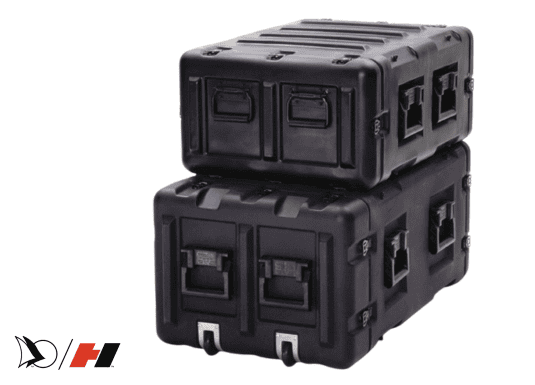

Peli Rack Cases

  • MAC RACK™ CASES

    Compact medium-duty protection for rack-mounted electronics.

REDUCED SWAY SPACE

COMPACT FOOTPRINT

20-24-INCH DEPTHS

REDUCED SWAY DESIGN

Compact medium-duty rack protection with a low-visibility finish, reduced sway space and two rack depths. Peli-Hardigg MAC Rack cases safeguard rugged rack-mounted electronics in defence, broadcast, communications, test and field environments where space and weight matter.


Built with a rotomoulded outer shell and a shock-mounted 19-inch EIA rack in 20- or 24-inch depths, their smaller footprint protects against shock, vibration, moisture and impact while maximising available space.

Learn More

SHOCK / VIBRATION SYSTEM

Cylindrical Shock Mounts installed on a strong light-weight extruded aluminum rack frame with a "Dog Ear" corner. Shock mounts attach directly to a moulded-in shoulder on the body of the case. Frame can be tapped Standard (SAE) or Metric (M6).

Specs:

SEE RACK COMPARISON CHART
 Sizes

3U ,4U, 5U, 6U, 7U, 9U, 11U, 12U, and 14U
2" and 5" lid options

 G-Rating*  50 - 80
 Payload  8-shock mounts: 10.9 kg to 45.4 kg
16- shock mounts: 45.4 kg to 90.7 kg
 Sway Space 21 mm sway for the ability to decelerate shock
 Base Features » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HCB)
» Eight (8) Spring Loaded Stainless Steel Black Handle (SSB) under 5U. Eight (8) plastic handles 6U and higher
» Heavy Duty Reinforced Aluminum Rack Frame
» Mould-in Edge Casters on 127 mm Lid
» Tapped Standard (SAE) or Metric (M6)
» Standard Labeling

Typical Applications Typical uses include solid-state circuit electronics, radar and microwave antennas, control consoles and panels, or radio, TV and communications equipment.
 Customisation
MAC Rack™ cases are fully configurable and made to order using the list of options. They can be customised by our Technical Sales solution team.

*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.

MAC Rack Sizing Options

Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1907-02/25/02 50.8 cm5.6 cm 5.6 cm 14.06 kg
 MR1907-02/29/02 61 cm 5.6 cm 5.6 cm 14.51 kg
  MR1907-02/25/05 50.8 cm 5.6 cm 11.2 cm 14.51 kg
 MR1907-02/29/05 61 cm 5.6 cm 11.2 cm 14.97 kg
 MR1907-05/25/05 50.8 cm  11.2 cm  11.2 cm 14.97 kg
  MR1907-05/29/05 61 cm 11.2 cm 11.2 cm 15.42 kg

Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1909-02/25/0250.8 cm
5.6 cm5.6 cm14.97 kg
 MR1909-02/25/05 50.8 cm 5.6 cm 11.2 cm 15.88 kg
MR1909-02/29/02
61 cm5.6 cm5.6 cm15.88 kg
 MR1909-02/29/05  61 cm  5.6 cm 11.2 cm  16.33 kg
  MR1909-05/25/05 50.8 cm 11.2 cm 11.2 cm 16.33 kg
   MR1909-05/29/05 61 cm 11.2 cm 11.2 cm 16.78 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
   MR1910-02/25/0250.8 cm5.6 cm5.6 cm16.33 kg
    MR1910-02/29/0261 cm5.6 cm5.6 cm16.78 kg
    MR1910-02/25/05 50.8 cm 5.6 cm 11.2 cm 17.24 kg
     MR1910-02/29/05 61 cm 5.6 cm 11.2 cm 17.69 kg
  MR1910-05/25/05 50.8 cm 11.2 cm 11.2 cm 17.69 kg
  MR1910-05/29/05 61 cm 11.2 cm 11.2 cm 18.14 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
  MR1913-02/25/0250.8 cm5.6 cm5.6 cm17.69 kg
 MR1913-02/29/0261 cm5.6 cm5.6 cm18.14 kg
 MR1913-02/25/05 50.8 cm 5.6 cm 11.2 cm 18.6 kg
  MR1913-02/29/05 61 cm 5.6 cm  11.2 cm 19.05 kg
   MR1913-05/25/05 50.8 cm 11.2 cm 11.2 cm 19.05 kg
 MR1913-05/29/05 61 cm 11.2 cm 11.2 cm 19.5 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1914-02/25/0250.8 cm
5.6 cm5.6 cm19.05 kg
MR1914-02/29/02
61 cm5.6 cm5.6 cm19.05 kg
 MR1914-02/25/05 50.8 cm 5.6 cm 11.2 cm 19.5 kg
  MR1914-02/29/05 61 cm 5.6 cm  11.2 cm 19.96 kg
   MR1914-05/25/05 50.8 cm 11.2 cm 11.2 cm 19.96 kg
 MR1914-05/29/05 61 cm 11.2 cm 11.2 cm 21.32 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1917-02/25/0250.8 cm5.6 cm5.6 cm20.87 kg
 MR1917-02/29/0261 cm5.6 cm5.6 cm21.32 kg
 MR1917-02/25/05 50.8 cm 5.6 cm 11.2 cm 21.32 kg
  MR1917-02/29/05 61 cm 5.6 cm 11.2 cm 21.77 kg
   MR1917-05/29/05 61 cm 11.2 cm 11.2 cm 22.23 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1921-02/25/02 50.8 cm5.6 cm5.6 cm22.68 kg
 MR1921-02/29/0261 cm5.6 cm5.6 cm23.13 kg
  MR1921-02/25/05 50.8 cm 5.6 cm 11.2 cm 23.13 kg
 MR1921-02/29/05 61 cm  5.6 cm  11.2 cm 23.59 kg
 MR1921-05/25/05 50.8 cm   11.2 cm   11.2 cm 23.59 kg
 MR1921-05/29/05 61 cm 11.2 cm 11.2 cm 24.04 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1923-02/25/02 50.8 cm5.6 cm5.6 cm23.59 kg
 MR1923-02/29/0261 cm5.6 cm5.6 cm24.04 kg
  MR1923-02/25/05 50.8 cm 5.6 cm 11.2 cm 24.04 kg
 MR1923-02/29/05 61 cm  5.6 cm  11.2 cm 24.49 kg
 MR1923-05/25/05 50.8 cm   11.2 cm   11.2 cm 24.49 kg
 MR1923-05/29/05 61 cm 11.2 cm 11.2 cm24.95 kg
Item Number    Rack Depth  Lid Depth Back Lid Depth Weight
MR1926-02/25/02 50.8 cm5.6 cm5.6 cm25.4 kg
 MR1926-02/29/0261 cm5.6 cm5.6 cm25.85 kg
  MR1926-02/25/05 50.8 cm 5.6 cm 11.2 cm 25.85 kg
 MR1926-05/25/05 50.8 cm    11.2 cm    11.2 cm 25.85 kg
 MR1926-02/29/05 61 cm  5.6 cm  11.2 cm 26.31 kg
 MR1926-05/29/05 61 cm 11.2 cm 11.2 cm26.31 kg
DOWNLOAD RACK BROCHURE →

Talk to a PELI rack case specialist.

Need help configuring your case? Availability depends on case family, style and size. A technical representative can confirm the correct configuration.
