SQUARE-HOLE STEEL FRAME
ANGLES SHOCK MOUNTS
MADE IN GERMANY
COMPACT SQUARE-HOLE MOUNTING

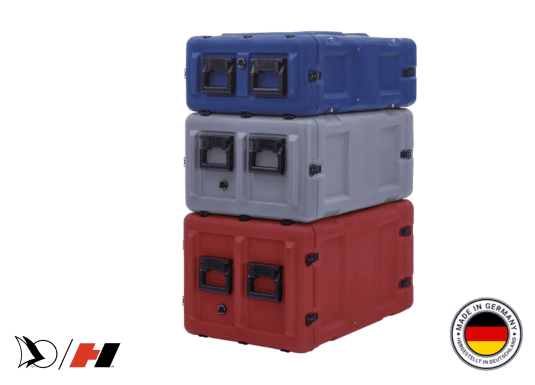

Compact medium-duty rack protection with a low-visibility finish, reduced sway space and two rack depths. Peli-Hardigg MAC Rack cases safeguard rugged rack-mounted electronics in defence, broadcast, communications, test and field environments where space and weight matter.
Built with a rotomoulded outer shell and a shock-mounted 19-inch EIA rack in 20- or 24-inch depths, their smaller footprint protects against shock, vibration, moisture and impact while maximising available space.
SHOCK / VIBRATION SYSTEM
Specs:
| Sizes | 4U, 6U, 8U, 10U and 12U |
| G-Rating* | 50 - 80 |
| Payload | 10 - 50 kg |
| Sway Space | 13 mm sway space |
| Base Features | » Square holed steel frame » Lightweight, compact, and inter-stackable » Shock mounts protect equipment from shock and vibration » High-strength steel rack frame supports equipment from 10-50 kg » Patented, wide-design, Comfort Grip Handles™ come as a standard option » 10 different models, frame heights 4-12U in two depths, 480 and 610mm » Variety of accessories and options » Edge casters standard in deep lids » Manufactured in Europe |
| Typical Applications | Typical uses include rack mountable precision test equipment, electro-mechanical, medical and biological diagnostic equipment, meteorological instruments, mobile operations, broadcast and video gear, laboratory equipment, aerospace instrumentation, servers, military mission planning, flight simulators |
| Customisation | MIN MAC Rack™ cases are fully configurable and made to order using the list of options. They can be customised by our Technical Sales solution team. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
