BROADEST SIZE RANGE
SEVEN RACK DEPTHS
154 KG PAYLOAD
MAXIMUM SHOCK PROTECTION

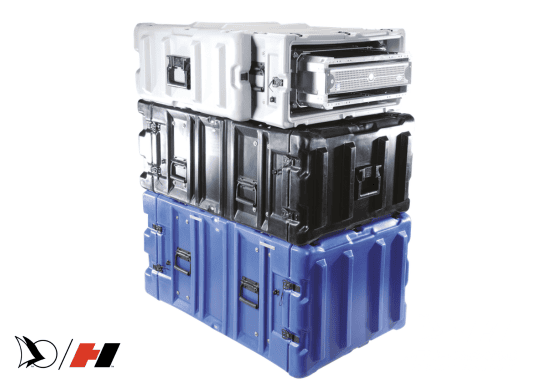

Maximum shock and vibration protection with precision-tuned elastomeric mounts, multiple rack depths and an optional removable frame. Peli-Hardigg Classic Rack cases safeguard ultra-fragile electronics in defence, aerospace, broadcast, test, medical and communications applications.
Built around a rugged rotomoulded shell and 19-inch EIA rack, the range offers sizes from 3U to 26U, rack depths from 17 to 33 inches and shock systems engineered for payloads up to 154 kg.
SHOCK / VIBRATION SYSTEM
Precision-tuned cylindrical elastomeric shock mounts, secured to full-length metal reinforcement rails, isolate ultra-fragile equipment from impact and vibration.
Specs:
| Sizes | 3U (4U), 4U (5U), 5U (6U), 6U (7U), 7U (8U), 9U (10U), 10U, 11U (12U), 14U (15U), 21U (22U), 26U (27U). "(U)" is same case size with 1U added to the frame. 2" and 5" lid options |
| G-Rating* | 15 - 30 |
| Payload | 8-shock mounts: 9.1 kg to 77 kg. 16-shock mounts: 72.6 kg to 154 kg. Requires heavy duty shock kit. |
| Sway Space | 50,8 mm sway space for maximum ability to decelerate shock forces and provide airflow |
| Base Features | » Black Plated Steel Non-Locking Catch-and-Strike Hardware » Four (4) Black Stainless Steel Handles » Tapped Standard (SAE) or Metric (M6) cage nuts included based on frame style choice » Choose either a Heavy Duty Extruded Aluminum Rack Frame or a Square Hole » Frame available for cases up to 14U. |
| Typical Applications | Typical uses include rack mountable precision test, electro-mechanical, medical and biological diagnostic equipment, memory storage devices, meteorological instruments, mobile operations, broadcast and video gear, laboratory equipment, aerospace instrumentation, servers, military mission planning, command and control equipment, and flight simulators. |
| Optional Frame | Square hole frame option. Cylindrical Shock Mounts installed on a heavy-duty square hole frame. Shock mounts attach to the metal reinforcement rails that run the full length of each corner of the case body. Cage nuts kits provided based on the Metric or SAE frame option that is chosen. |
| Customisation | Classic Rack cases are fully configurable and made to order using the list of options. They can be customised by our Technical Sales solution team. |
*The G Fragility Rating indicates how sensitive equipment is to shock and vibration. Ratings range from 12-18G (extremely sensitive) to 120G+ (very rugged), helping determine the appropriate level of shock isolation.
